Best Hydronic Floor Heating System

Our distribution panels simplify your radiant heat installation. They have all the necessary components to operate radiant systems and pass all known building codes. On-site work will be minimized to connect your supply and return lines to the boiler and manifolds, electrical wiring and providing make-up water supply. No soldering is required.The 1″ copper tubing is large enough to accommodate both large and small projects. All panels are pressured tested prior to leaving our facility and are carefully packaged to assure safe delivery.

The Heart of your Heating SystemRadiant Heat manifolds play a large part in heating systems. It allows for even distribution of supply water from the heat source to distribution lines that circulate hot water through the entire system. They can be used in a variety of applications ranging from radiant, hydronic, or snow-melt applications. The systems are made of adapters, end caps, and fittings that can be customized in a manifold depending on the application. A well-made manifold should distribute water efficiently and economically when the PEX tubing is sized properly. PEX manifolds reduce the need for soldering copper pipes, which prevents flames and chemicals getting into water lines causing problems. A Radiant PEX Manifold set can cover a large area depending on the branch. A 2-branch Radiant PEX Manifold Set can cover a maximum of 800 square feet to an 8-branch that can cover 1800-2200 square foot of floor.Our Radiant Floor Heating Manifold Set comes complete with:(1)- Manifold balance section Body with flow meters(1)- Manifold Isolation section Body with valves(2)- Mounting brackets (2)- Manifold Isolation ball valve with 1″ (inch) NPT Pipe Connection(2)- Stem thermometer on each Manifold Isolation ball valve(2)- Manifold end capsAlso includes 1/2″ Compression connectors-(* quantity varies by branch see below) CM1634-2 4pcsCM1634-3 6pcsCM1634-4 8pcsCM1634-5 10pcsCM1634-6 12pcsCM1634-8 16pcsCM1634-12 24pcsDon’t forget to “Add to Cart” now to start enjoying the durability of our Radiant Heat Manifolds!

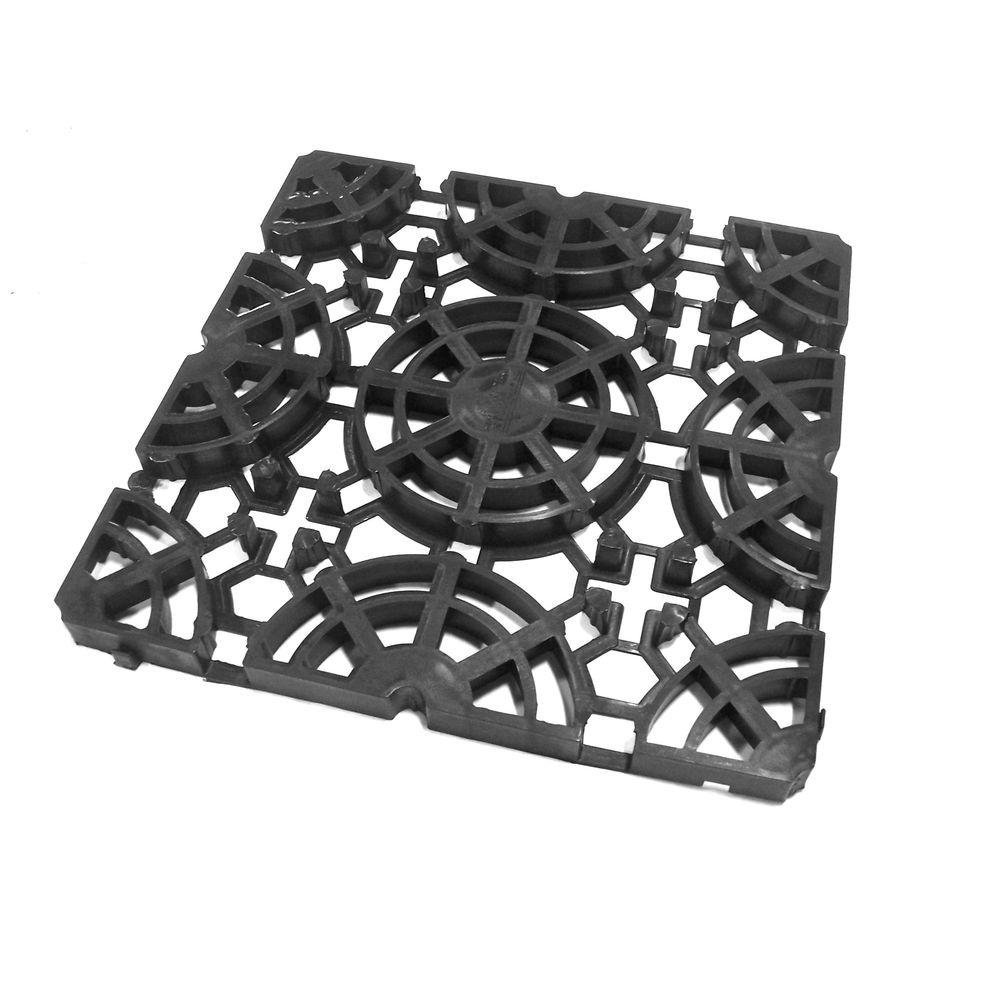

The lightweight design is ideal for both first and second- floor installations. They are mold, mildew and moisture resistant. The grid module design allows for 8 in. on center design. Recommended use with EasyFloor Heat Plates, EasyFloor radiant barrier foil, and Pex tubing.

The i-Link series 2-zone circulator pump controller is operated by low voltage thermostats or any other low voltage controllers having an SPST switching action. The i-Link controller provides intermediate switching to permit up to 2 circulators and a boiler operating control in a multi-zone hydronic heating system. Intelligent Linking System (i-Link) allows unlimited zone expansion with additional i-Link controllers. Field selectable priority with timer prevents freeze-ups in the event of a priority zone failure. Unique power surge protection to avoid damage to the unit and ensure continuous control operation. The panel provides EZ screwless terminal blocks for connections to the thermostats. LED indicators on the front panel provides functional status and easy troubleshooting. In addition, a system circulator is turned on whenever any zone calls for heat. Product Features and Benefits: * Front panel indicator lights * Field selectable priority * Priority timer for protection of a priority zone malfunction and prevention of freeze-ups in the heating zones. * Unlimited zone expansion * Capable of turning on extra system circulator * Addition features for SP-84/85/86: Manual priority override(bypass) for each of the secondary zone * Isolated End Switch and Priority End Switch for Mod-Con Boiler application * Compact and modern design * Fuse protection * Power surge protection * Safety design with all electronic components hiding behind the enclosure * Simplified wiring * Contractor friendly PCB layout * High Capacity Field ReplaceableTransformer * Easy-Connect Terminals/Screwless Terminals for Thermostat Connections * 24VAC transformer output with common terminal provides compatibility with electronic thermostat * Universal thermostat compatibility * 100% Factory Tested * Extended 3 year warranty

Oxygen Barrier PEX Tubing – 1/2″ 500Ft Red PEX Pipe APPLICATION: Structural concrete slabs (rebar or wire mesh reinforced slabs). Non-structural slabs (thermal mass, gypsum slabs). Staple-up (between joists) radiant floor heating with and without heat transfer plates. “Sandwich” type radiant heating (between subfloor and finished floor). Snow & ice melting systems. Baseboard & radiator heating systems. Note: Can be used for cold water system, but not potable water. SPECIFICATION: Type: PEX Tube(Oxygen Barrier) Color: Red Total Length: 500FT Nominal Diameter: 1/2″ Inside Diameter: 0.66″ Outside Diameter: 0.86″ Tube Thickness: 0.1″ Temperature Range: -47℉ to 230℉ Pressure Rate: 188-217psi at 20℃; 101-108psi at 95℃ Bending Radius: 6.9″ Product Weight: 150g/m CONNECTION: 1pression Fitting Systems 2.Crimp Connection Systems(Crimp Tool + Crimp Rings + Crimp Fittings) 3.Clamp(Cinch) Connection Systems(Cinch Tool + St. Steel Clamps + Crimp Fittings) 4.Press System(by Viega) ATTENTION: 1. When the tube used in outdoor, for better function, please cooperate with insulated pipes. 2.Not for use with steam. 3.Keep the tube out of direct sunlight. 4. Cannot be used for potable water.

The i-Link series 3-zone hydronic radiant floor heating switching relay for pump / circulator control is operated by low voltage thermostats or any other low voltage controllers having an SPST switching action. The i-Link controller provides intermediate switching to permit up to 3 circulators and a boiler operating control in a multi-zone hydronic heating system. Intelligent Linking System (i-Link) allows unlimited zone expansion with additional i-Link controllers. Field selectable priority with timer prevents freeze-ups in the event of a priority zone failure. Unique power surge protection to avoid damage to the unit and ensure continuous control operation. The panel provides EZ screwless terminal blocks for connections to the thermostats. LED indicators on the front panel provides functional status and easy troubleshooting. In addition, a system circulator is turned on whenever any zone calls for heat. Product Features and Benefits: * Front panel indicator lights * Field selectable priority * Priority timer for protection of a priority zone malfunction and prevention of freeze-ups in the heating zones. * Unlimited zone expansion * Capable of turning on extra system circulator * Addition features for SP-84/85/86: Manual priority override(bypass) for each of the secondary zone * Isolated End Switch and Priority End Switch for Mod-Con Boiler application * Compact and modern design * Fuse protection * Power surge protection * Safety design with all electronic components hiding behind the enclosure * Simplified wiring * Contractor friendly PCB layout * High Capacity Field Replaceable Transformer * Easy-Connect Terminals/Screwless Terminals for Thermostat Connections * 24VAC transformer output with common terminal provides compatibility with electronic thermostat * Universal thermostat compatibility * 100% Factory Tested * Extended 3 year warranty

Conclusion

By our suggestions above, we hope that you can found hydronic floor heating system for you.Please don’t forget to share your experience by comment in this post. Thank you!
